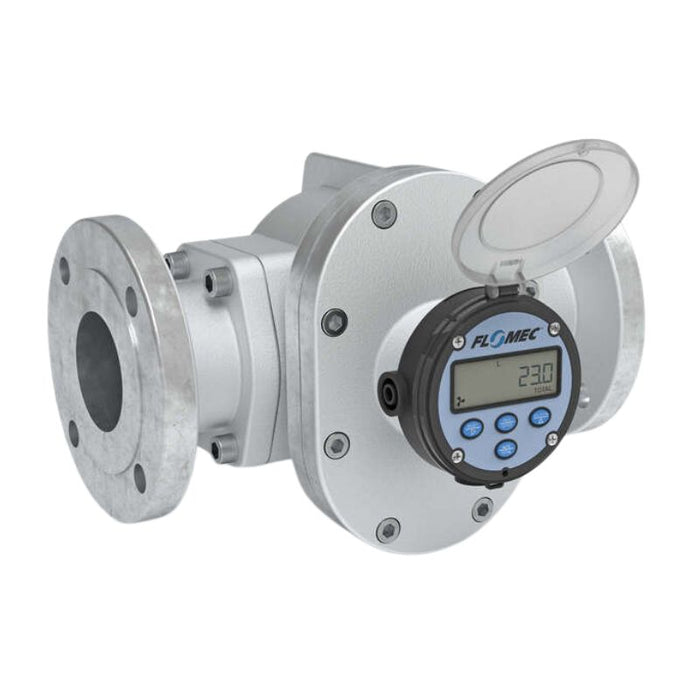

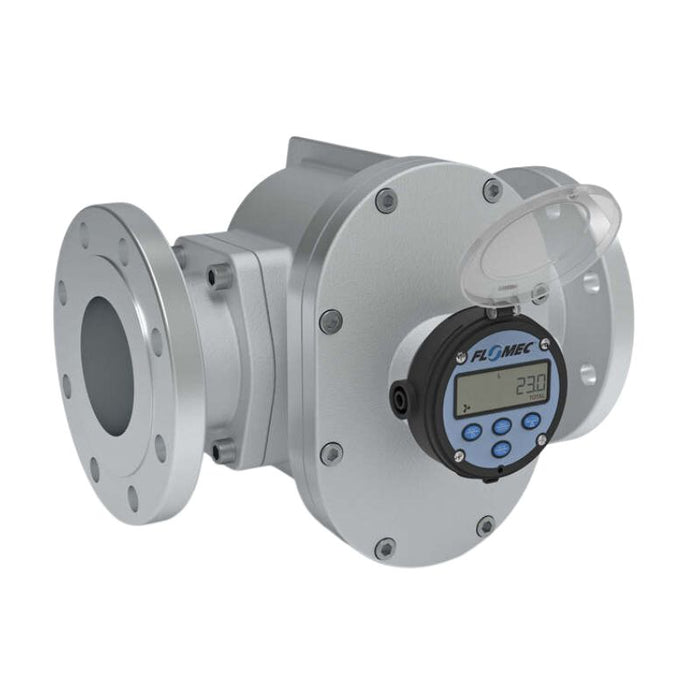

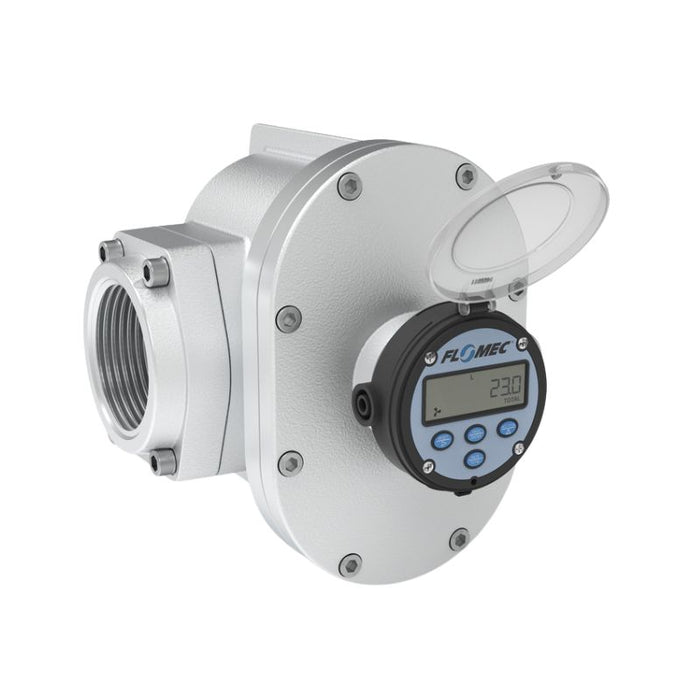

OM Series Flow Meter with Display and Outputs | 3" - 4" (35 L/min - 2500 L/min)

OM Series Flow Meter with Display and Outputs | 3" - 4" (35 L/min - 2500 L/min)

SKU OM080A001-811R5
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
$6,126.00 - $13,476.00
$6,126.00
$6,126.00 - $13,476.00
$6,126.00

Introducing the Large Capacity OM Series Flow Meter with Display—a rugged and reliable solution designed for precision liquid measurement in diverse applications. This robust meter excels in scenarios requiring exceptional accuracy, boasting a flow range from 35 L/min to 2500 L/min with an impressive ± 0.2% reading precision. Whether you're handling bulk diesel fuel transfers or lubricating oils and greases, the OM Series ensures consistent and reliable measurements, providing a solid foundation for decision-making.

The OM Series Flow Meter Pulse Out stands out for its impressive accuracy, with an outstanding ±0.2% reading accuracy. This precision guarantees the reliability of each measurement, enhancing the efficiency and success of your processes. The OM is equipped with an RT14 flow rate totaliser, capable of connecting with external control and monitoring devices (PLC, SCADA, DCS) through scaled pulse, 4–20 mA (loop-powered) output, or flow alarms.

Our OM Series flow meters for fuels and oils are constructed with aluminium body material, PPS rotors (Aluminium in the OM100E), and Viton O-rings and are engineered to endure the rigors of industrial use, ensuring consistent and accurate measurements over time. This robust construction minimises downtime, instilling confidence in operations that demand precision and dependability.

Elevate your liquid handling procedures with the OM Series Flow Meter, combining robust reliability and accurate measurements to boost efficiency and instill confidence in demanding environments.



OM Series Oval Gear flow meters are perfect for measuring small volumes of a thick or non-conductive liquids.

Applications
  • Bulk transfer of diesel fuel
  • Lubricating oils and greases
  • Edible oils
Features
  • Accuracy of ± 0.2% of reading
  • Repeatability typically ± 0.03% of reading
  • Flows from 35 L/min. – 2500L/min
  • Sizes 3” – 4” (80mm-100mm) Pipe Sizes
  • High accuracy and repeatability, direct volumetric reading
  • No requirement for flow conditioning (straight pipe runs)
  • Only two moving parts means less maintenance and better reliability
  • Factory calibrated
Specifications
  • Technology: Oval Gear
  • Flow Range: 35 - 2500 L/min (Size Dependant)
  • Accuracy: ± 0.2%
  • Repeatability: ± 0.03%
  • Pressure Rating: 10 - 12 bar (145 - 175 psi) Size Depedant
  • Operating Temperature Range: -40° C - 80° C
Size: 3 in. (35 - 750 L/min)
Connection: BSP
Display Required: LCD Display with Outputs - RT14

FREQUENTLY ASKED QUESTIONS

How often do we need to calibrate our OM Series flow meter?

There is no standard recommendation. It will depend on how often it is used, the criticality of the measurement, and how much you are willing to spend on keeping the instrument in calibration. The common best practice approach is to choose a nominal re-calibration period and then check the re-calibration against the original calibration report to see how much it has drifted during that period. If it has changed more than what deems acceptable, you may shorten the frequency. If the change is a lot less, you may choose to extend it.

If we ordered a meter with a meter mount display, can we take out the display to mount it remotely?

Yes, the display can be remotely mounted. You can contact us or our distributor in your area on what parts are needed for this conversion.

Can we have our meter recalibrated?

Yes, we can cater to recalibration requests of varying requirements, including multipoint calibrations. Contact us for more information.

Can we install our meter vertically?

Yes, the meter can be installed vertically but the rotor shafts must be in horizontal plane and the liquid should travel from bottom to top through the meter. Failure to mount your meter in the correct orientation will cause the weight of the rotors to bear down on the thrust bearings. The short term effects of incorrect mounting orientation will be a loss in accuracy, with long term effects ranging from reduced lifespan to fairly rapid catastrophic damage.

Do you have CAD files or drawings available for your these meters?

Yes, we have a full list of CAD files and drawings available here. If you have any other requirements for specifying the OM Series, please feel free to contact us so we can assist you.
