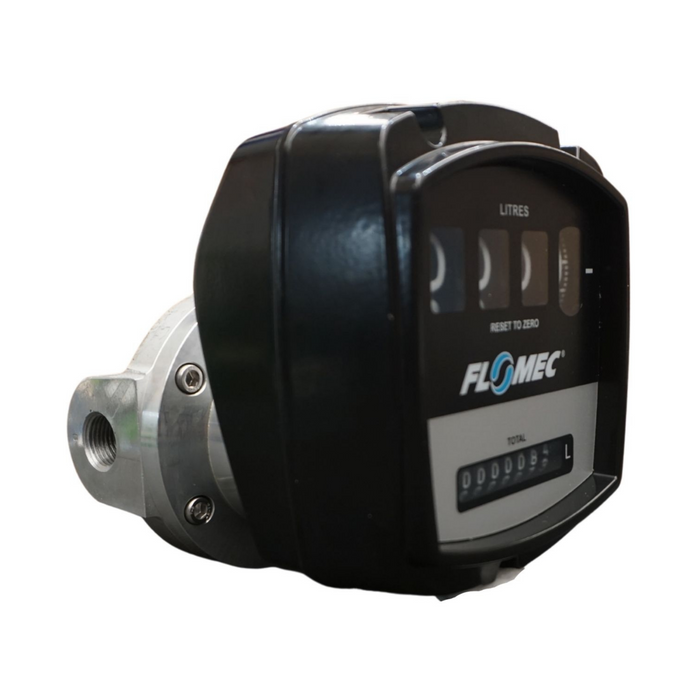

OM Series Mechanical Flow Meter with BSP/NPT Ports

OM Series Flow Meter with Mechanical Display | 3" - 4" (35 L/min - 1500 L/min)

SKU OM080A001-810M3
Availability:
In stock
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
In stock
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
Manufactured Item - Typical Lead Time 5 days
$5,310.00 - $8,769.00
$5,310.00
$5,310.00 - $8,769.00
$5,310.00

The FLOMEC® Large Capacity OM Series Mechanical Meters excel at accurately measuring fuels and lubricants, ensuring reliable performance with clean liquids of various viscosities.

The medium-capacity OM Series stands out for its low pressure drop, making it an ideal choice for a wide range of liquid transfer or dispensing applications, whether the flow is pumped or gravity-fed.

Benefiting from simple yet proven positive displacement technology, the OM Series meters eliminate the need for flow conditioning (straight pipe runs), making them suitable for compact installations. This technology ensures trouble-free operation without compromising accuracy.

With a rugged mechanical display, these meters offer the advantages of easy installation and usability in remote areas or locations without power.

The mechanical flow meters in the OM Series are constructed with high-quality materials suited to fuels and oils, featuring an aluminium body, PPS rotors, and Viton O-rings.

The OM Series Mechanical meters provides many of the advantages of the electronic version of the OM-Series meters with a rugged mechanical display that provides trouble-free installation and usage in remote areas or areas with no power.

Applications
  • Bulk Diesel fuel Transfer
  • Biofuels
  • Glycols / Anti-Freeze
  • Lubricating oils and greases
Features
  • Accuracy ± 1% of reading
  • Repeatability typically ± 0.03% of reading
  • Flows from 35 L/min. – 1500L/min
  • Sizes 3” – 4” (80mm-100mm) Pipe Sizes
  • High accuracy and repeatability, direct volumetric reading
  • No requirement for flow conditioning (straight pipe runs)
  • Only two moving parts means less maintenance and better reliability
  • Factory calibrated
Specifications
  • Technology: Oval Gear
  • Flow Range: 35 - 1500 L/min (Size Dependant)
  • Accuracy: ± 1%
  • Repeatability: ± 0.03%
  • Pressure Rating: 10 - 12 bar (145 - 175 psi) Size Depedant
  • Operating Temperature Range: -15° C - 80° C
Size: 3 in. (35 - 750 L/min)
Connection: BSP
Display: M3 - Mechanical Display

FREQUENTLY ASKED QUESTIONS

How often do we need to calibrate our OM Series flow meter?

There is no standard recommendation. It will depend on how often it is used, the criticality of the measurement, and how much you are willing to spend on keeping the instrument in calibration. The common best practice approach is to choose a nominal re-calibration period and then check the re-calibration against the original calibration report to see how much it has drifted during that period. If it has changed more than what deems acceptable, you may shorten the frequency. If the change is a lot less, you may choose to extend it.

If we ordered a meter with a meter mount display, can we take out the display to mount it remotely?

Yes, the display can be remotely mounted. You can contact us or our distributor in your area on what parts are needed for this conversion.

Can we have our meter recalibrated?

Yes, we can cater to recalibration requests of varying requirements, including multipoint calibrations. Contact us for more information.

Can we install our meter vertically?

Yes, the meter can be installed vertically but the rotor shafts must be in horizontal plane and the liquid should travel from bottom to top through the meter. Failure to mount your meter in the correct orientation will cause the weight of the rotors to bear down on the thrust bearings. The short term effects of incorrect mounting orientation will be a loss in accuracy, with long term effects ranging from reduced lifespan to fairly rapid catastrophic damage.

Do you have CAD files or drawings available for your these meters?

Yes, we have a full list of CAD files and drawings available here. If you have any other requirements for specifying the OM Series, please feel free to contact us so we can assist you.
